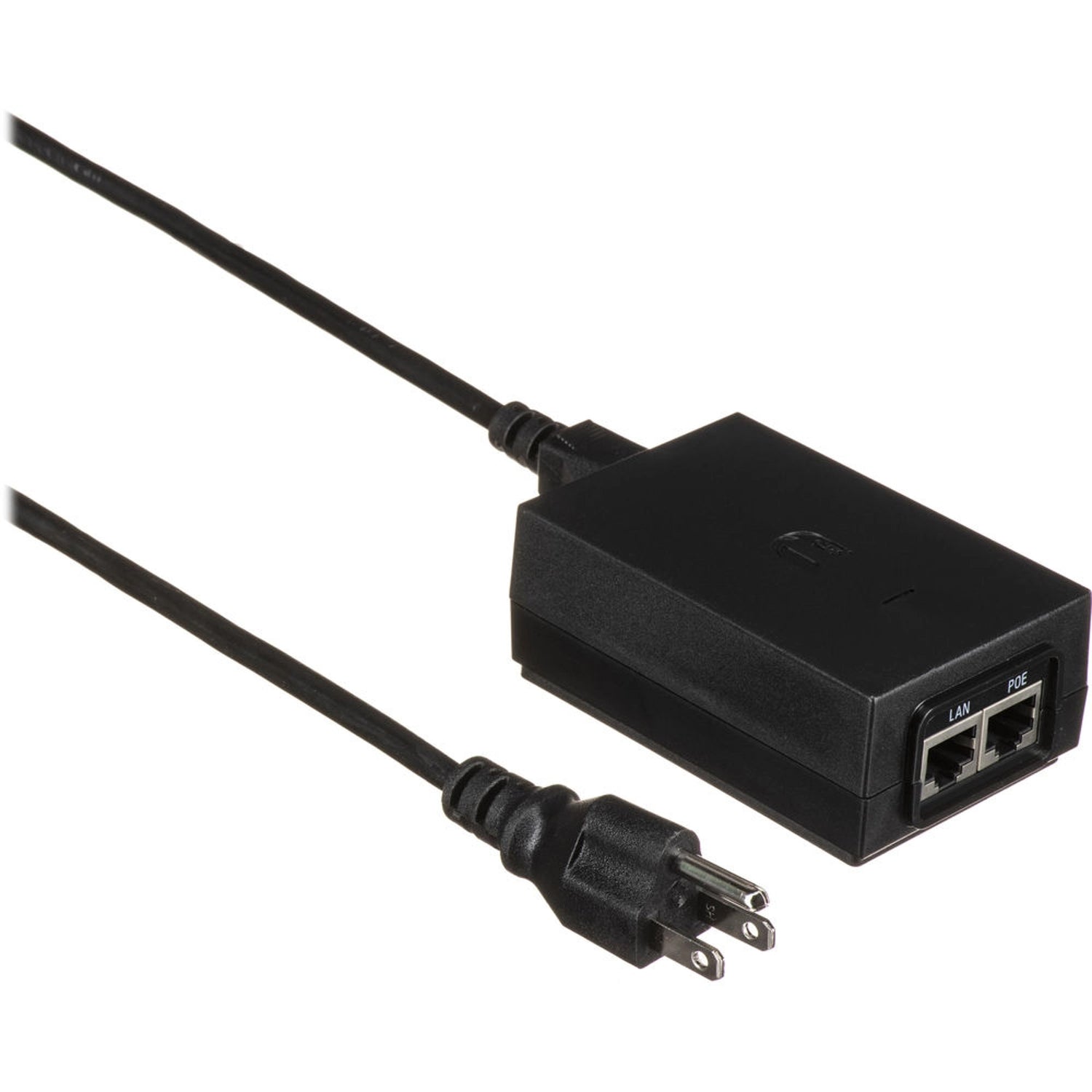

Ubiquiti POE-24-24W-G PoE Injector, 24V 24W Gigabit

The Ubiquiti POE-24-24W-G is a high-power 24V passive PoE injector with a Gigabit LAN port. It delivers power and data to a compatible 24V passive PoE device over a single Ethernet cable, with built-in surge protection and remote reset support.

• Output voltage: 24V DC @ 1.0A (24W)
• Gigabit LAN port: Yes
• LAN activity indicator: No
• Remote reset capability and reset button: Yes
• 2-pair powering: pins 4, 5 (+) and pins 7, 8 (-)
• Rated input: 100-240V AC @ 50/60Hz; input current 0.6A @ 120V AC, 0.4A @ 240V AC
• Efficiency: 80+%; output ripple 1% max.
• Data IN / PoE: RJ45 shielded sockets
• Surge protection: difference and common mode; max. surge discharge 1500A (8/20 μs) power
• AC connector: IEC-320 C6
• Dimensions: 88 x 57 x 33 mm (3.5 x 2.2 x 1.3 in); weight 159 g (5.6 oz)
• Operating temperature: 0 to 40°C (32 to 104°F); humidity 35 to 95% noncondensing
• Certifications: CE, FCC, IC, UL
