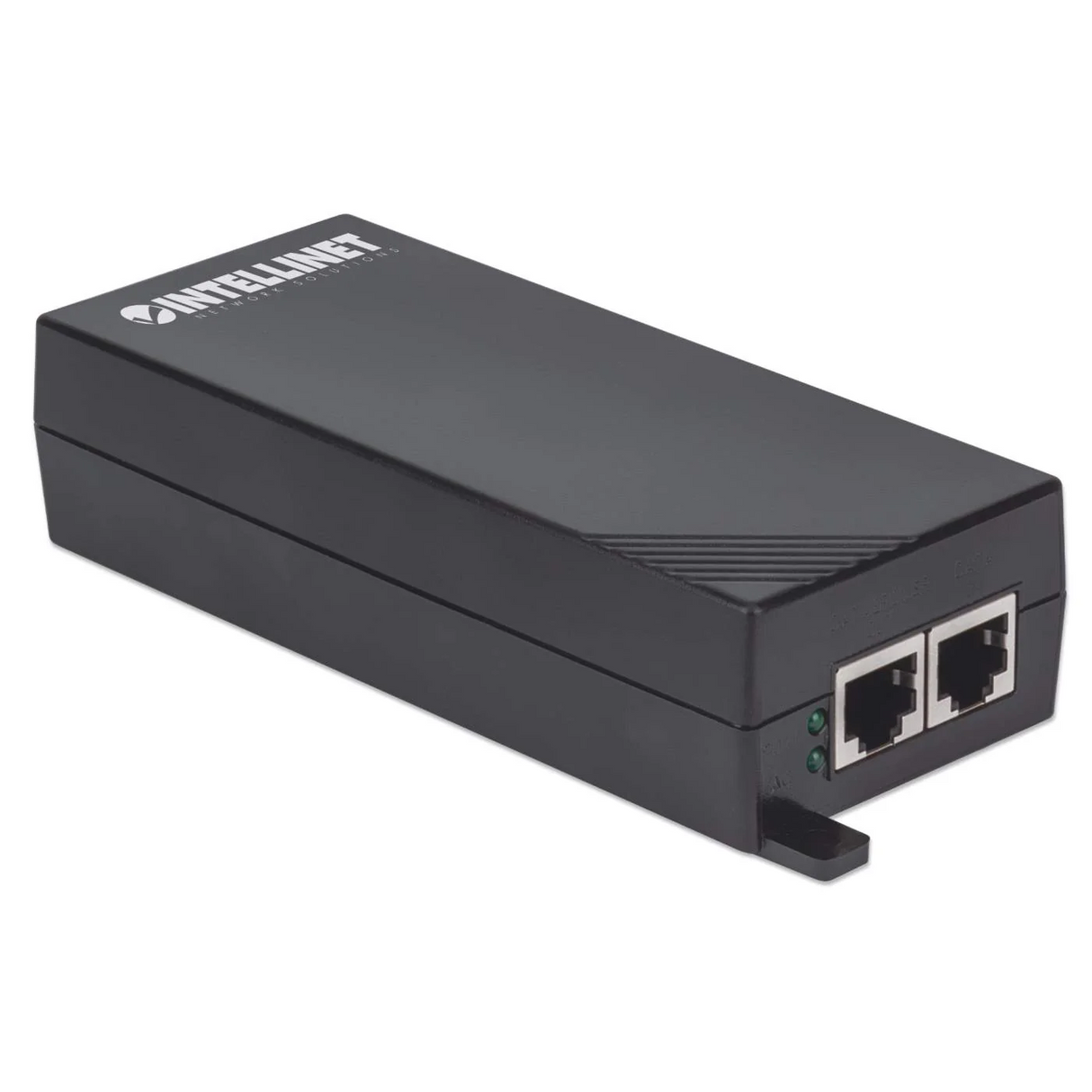

Intellinet 561518 Gigabit High-Power PoE+ Injector, 30W

The Intellinet 561518 Gigabit High-Power PoE+ Injector lets you connect an IEEE 802.3af/at-compliant device to a non-PoE switch port. It can power and supply a network connection to a wireless access point, IP phone, network camera or any IEEE 802.3af/at powered device, with up to 30 watts of output power.

• Power output: up to 30W
• Standards: IEEE 802.3af, 802.3at, 802.3, 802.3ab, 802.3u, 802.3x (flow control)
• Ports: one RJ45 10/100/1000 Mbps input port; one RJ45 10/100/1000 Mbps data and power output port
• Media support: 100Base-TX Cat5 UTP/STP; 1000Base-T Cat5e UTP/STP
• Distance support: up to 100 m (328 ft)
• PoE pinout: IEEE 802.3af/at Mode A, pins 1, 2 DC (+) and pins 3, 6 DC (-)
• Protection: IEEE 802.3af/at detection, short circuit protection, overload protection for currents over 0.6A, high-voltage protection
• LED: dual-color power and PoE LED
• Power input: 100-240V AC, 50-60 Hz, internal power supply; power consumption 35W max.
• Fanless design for silent operation; plastic housing
• Operating temperature: 0-50°C (32-122°F); humidity 5-90% RH non-condensing
• Package contents: injector, power cable, instructions
• Three-year warranty
