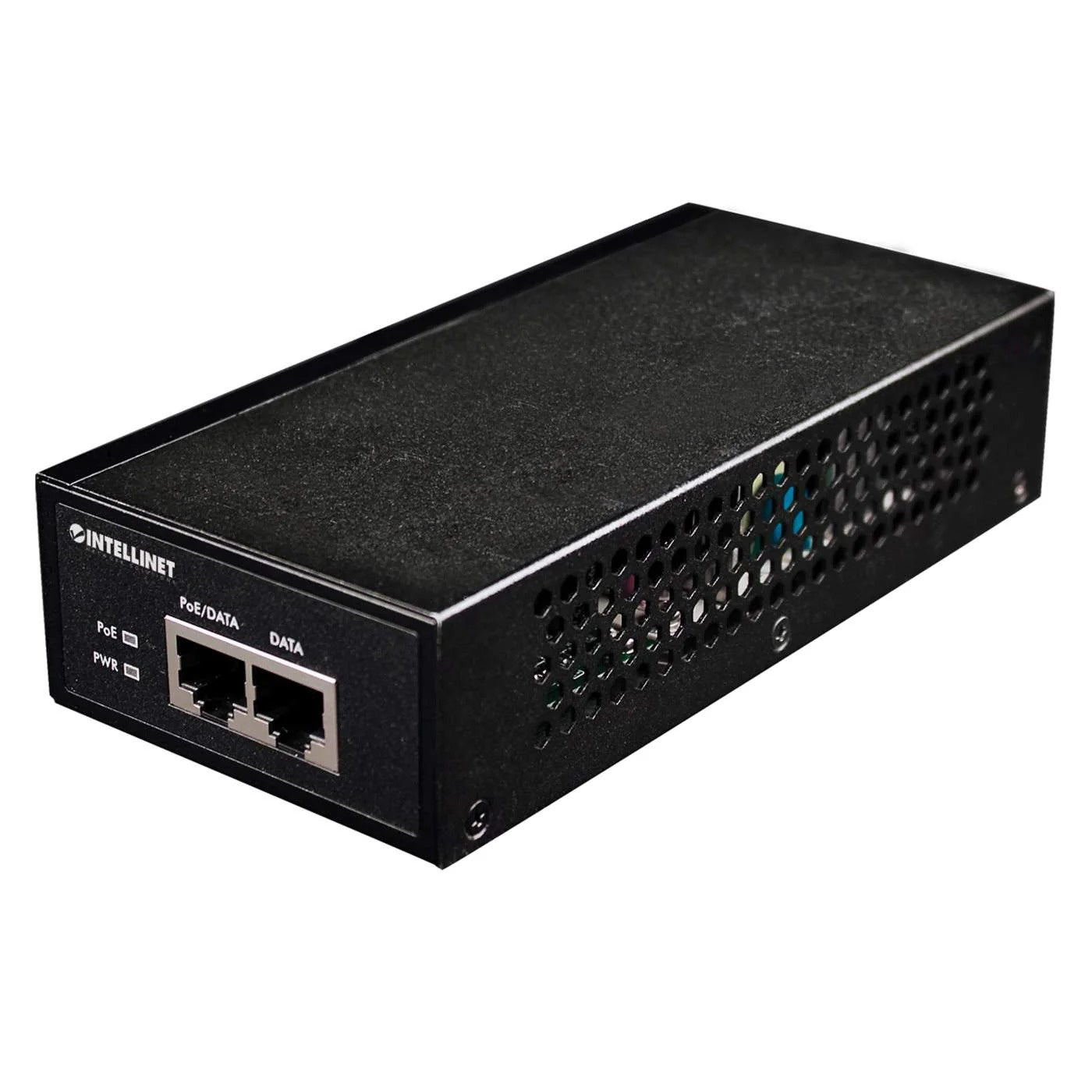

Intellinet 560566 Gigabit High-Power PoE+ Injector, 30W

The Intellinet 560566 1-Port Gigabit High-Power PoE+ Injector connects an IEEE 802.3af/at-compliant device to a non-PoE switch port, delivering up to 30 watts of power and Gigabit data over existing Cat5e/6 cabling. It protects connected equipment from short circuits, current overloads and high voltages.

• Power output: up to 30W
• Standards: IEEE 802.3af, 802.3at, 802.3, 802.3ab, 802.3u
• Ports: one RJ45 1000 Mbps input port; one RJ45 1000 Mbps data and power output port
• Media support: 100Base-TX Cat5 UTP/STP; 1000Base-T Cat5e UTP/STP
• Protection: short circuit protection, overload protection for currents over 1.8A, high-voltage protection above 58V
• Power input: 100-240V AC, 50-60 Hz; power consumption 42W max.
• Fanless design for silent operation; metal housing
• Dimensions: 154 x 72 x 35 mm (6.0 x 2.81 x 1.37 in)
• Operating temperature: 5-45°C (41-113°F); humidity 10-90% RH non-condensing
• Certifications: FCC Class A, CE, RoHS, UKCA; NDAA compliant
• Package contents: injector, power cable, mounting screws and drywall anchors, instructions
• Three-year warranty
