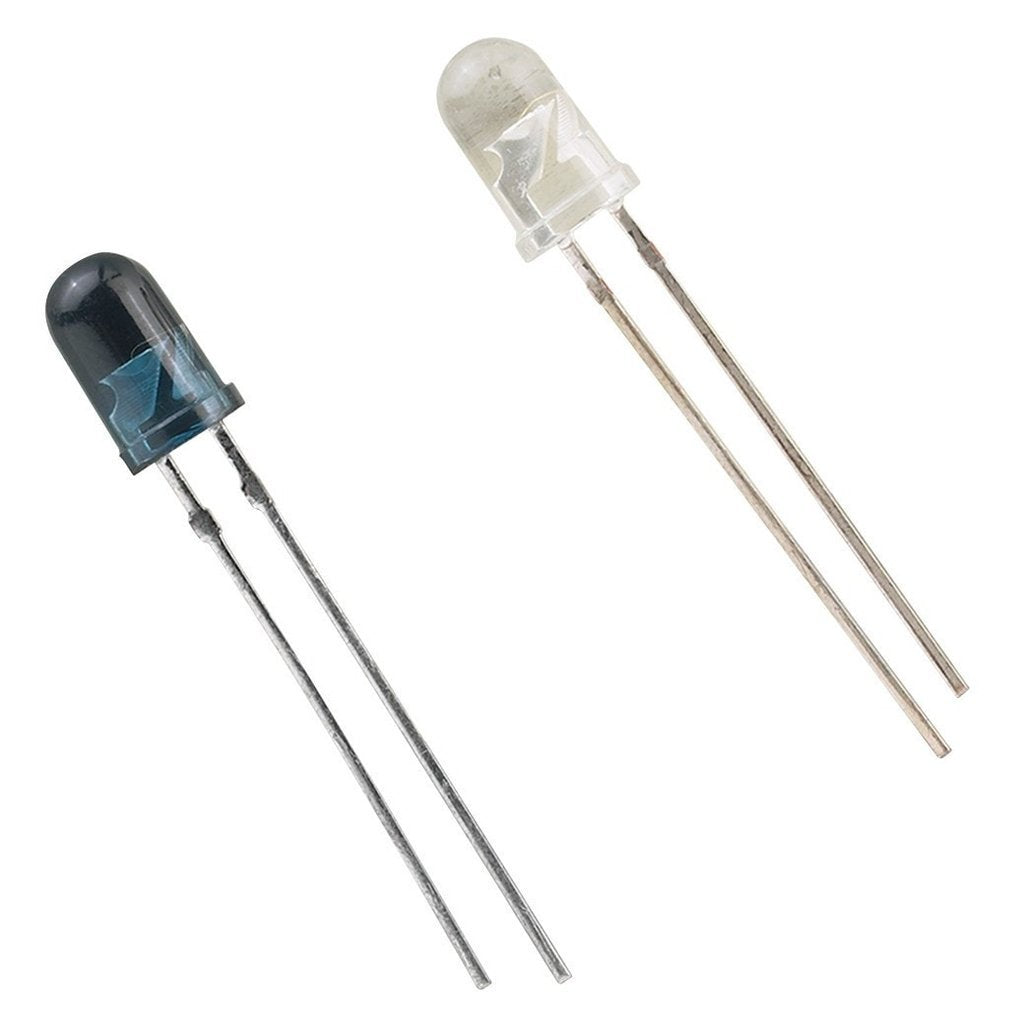

INFRARED LED EMITTER AND DETECTOR

Emitter Specs (tinted package) Reverse voltage: 5V Cont. forward current: 150mA Forward voltage: 1.3V typical, 1.7V max Radiant power output: 13-15mW Wavelength (peak emission): 950nm Detector Specs (max) VCEO (collector to emitter): 70V VECO (emitter to collector): 5V IC (collector current): 50mA Total power dissipation : 150mW Peak sensitivity wavelength: 850nm Spectral bandwidth range: 620-980nm Angle of half sensitivity: +/- 20°
