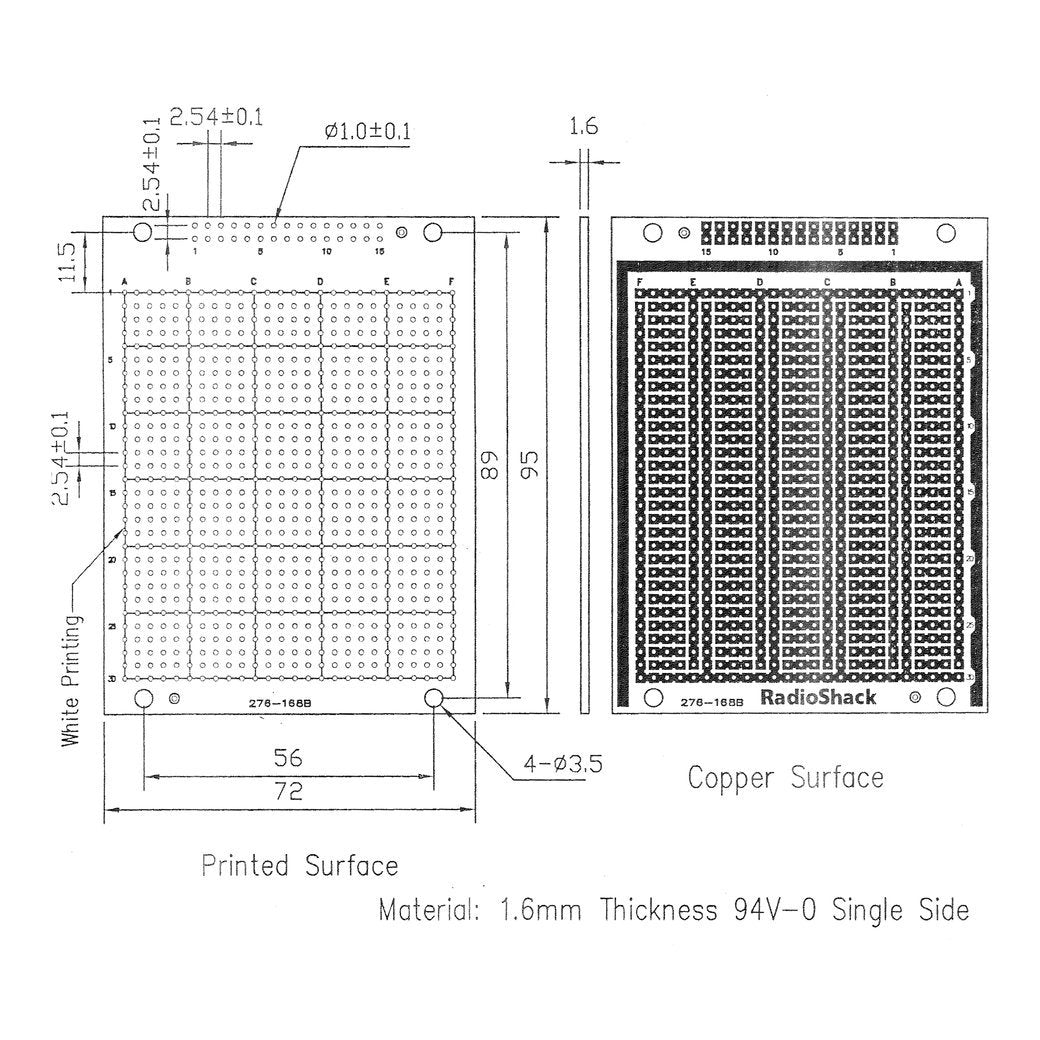

GENERAL-PURPOSE PROTOTYPING BOARD - 780 HOLES

Use this universal component PC board as the starting point for your electronics project.

Includes 780 pre-drilled indexed holes.
For ICs and DIPs up to 40 pins.
Dimension are 2-13/16x3-3/4".
Recommended 22AWG

Part Number 2760168
Dimensions 95mm x 72mm
Mounting Point Dimensions 89mm x 56mm
Soldering Points 780
Recommended Wire Gauge 22AWG
Perforated Array 25x30 Points
UPC 040293103958

Parts Warranty: 90 Days

FEATURES

• Includes 780 pre-drilled indexed holes.
• For ICs and DIPs up to 40 pins.
• Dimension are 2-13/16x3-3/4".
• Recommended 22AWG
• Soldering Points 780
