AtlasIED SHS-3T2-B Hidden Speaker Pair, Black, 70V/100V

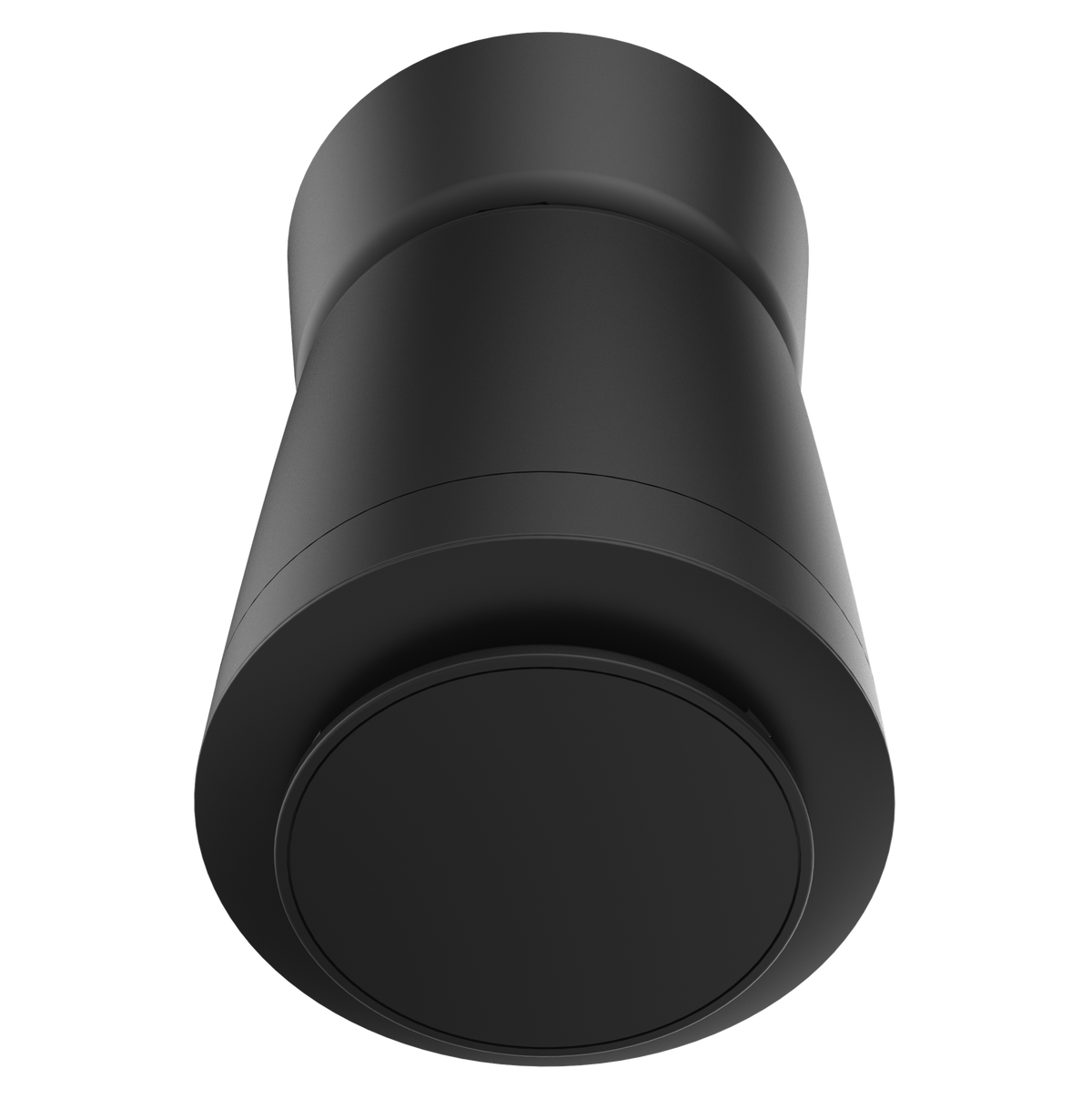

The AtlasIED SHS-3T2-B is a pair of black, multi-function Strategically Hidden Speakers that deliver clear, even, high-fidelity sound for paging, background music, and sound masking. A 2.25" full-range driver on a tunnel waveguide feeds AtlasIED's patented 3" adaptive dispersion lens, which acts as a phase plug to spread sound evenly and cut down hot spots under the speaker. Mount it as a pendant, on a wall, or in the ceiling, where it looks about the size of a high-end sprinkler head. Packaged and sold as a pair.

FEATURES

• SOLD AS A PAIR: Two black (RAL9011) speakers per package.
• 70V / 100V OPERATION: 0.5, 1, 2 & 4 W taps at 70.7V; 1, 2, 4 & 8 W taps at 100V.

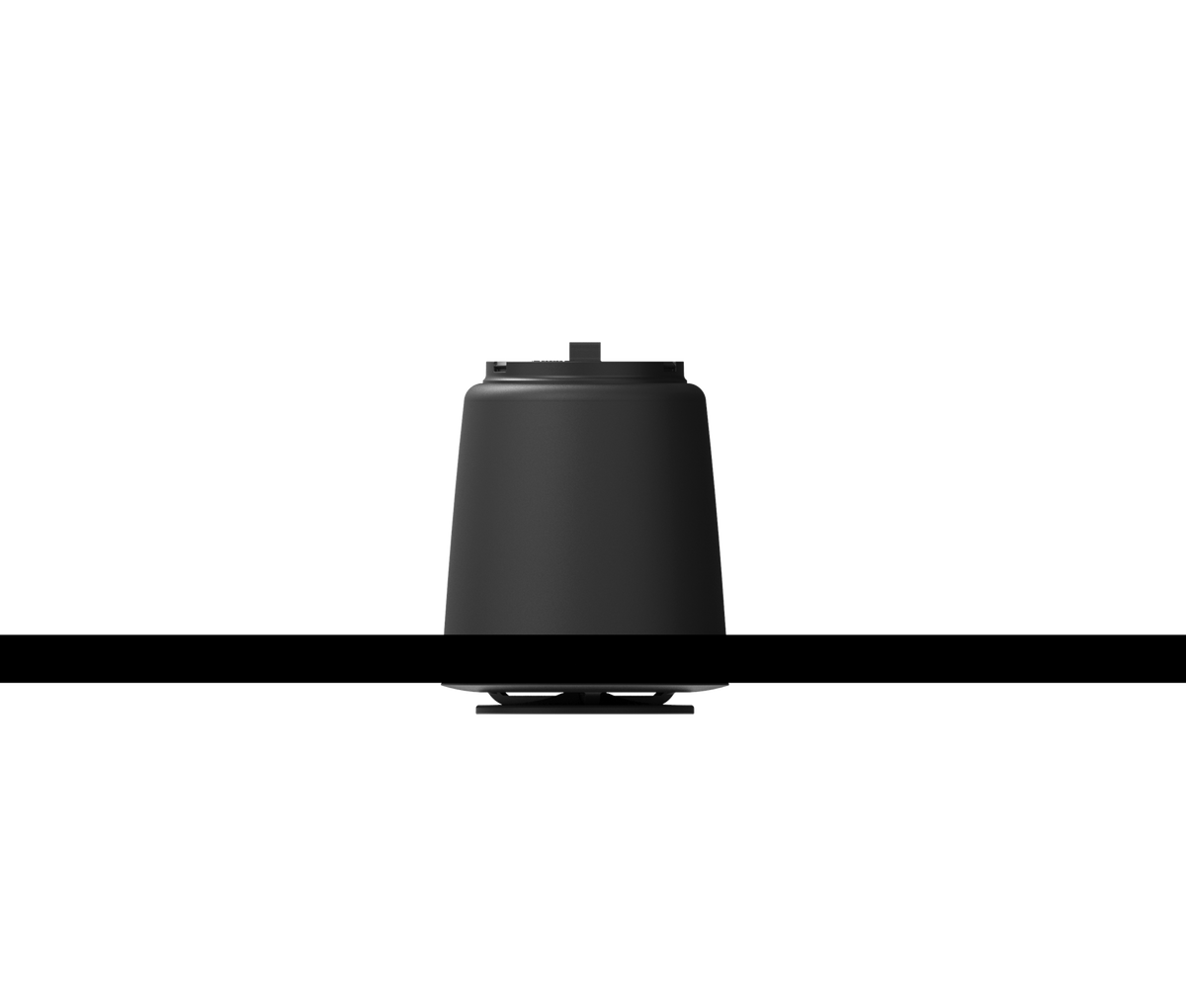

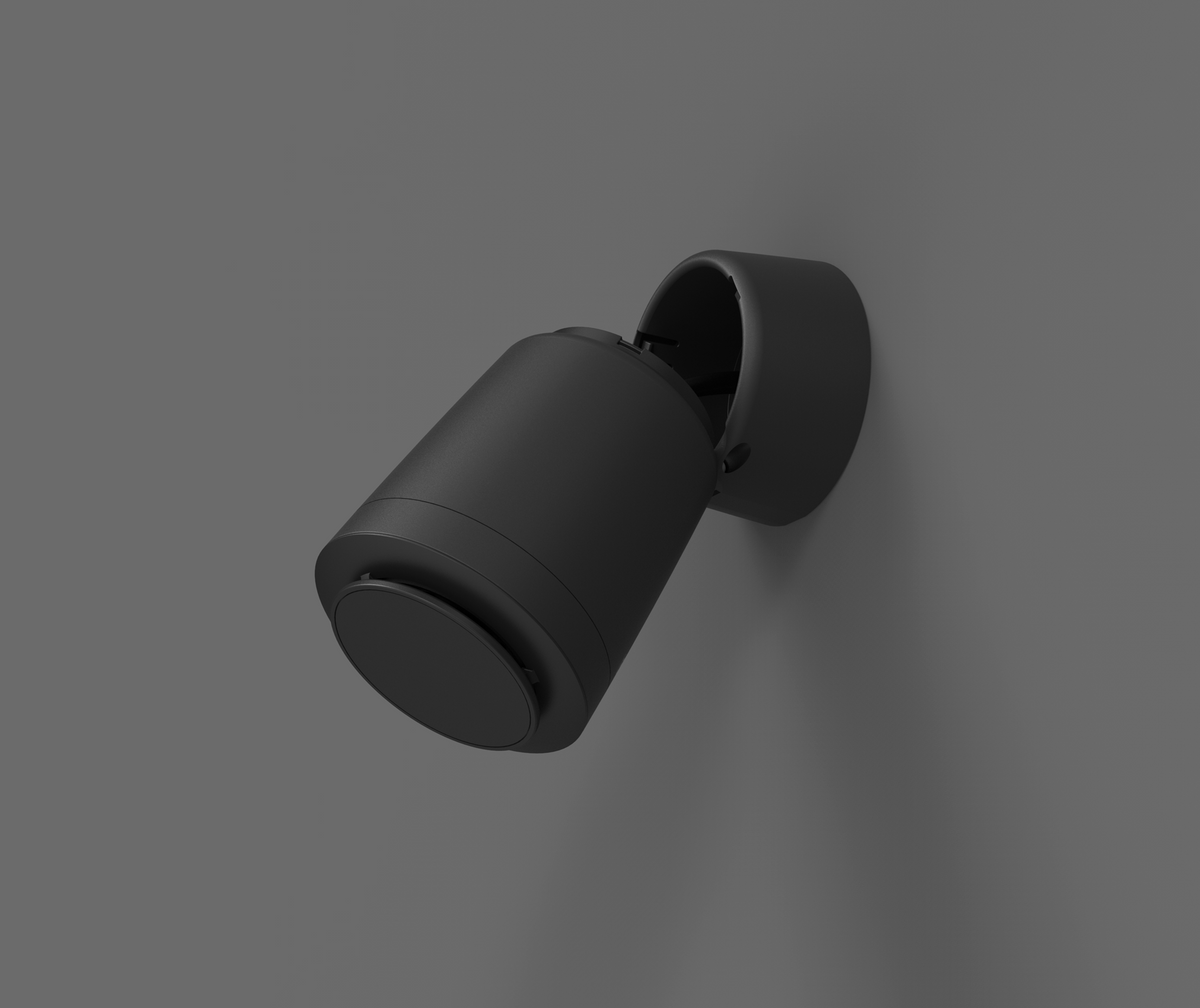

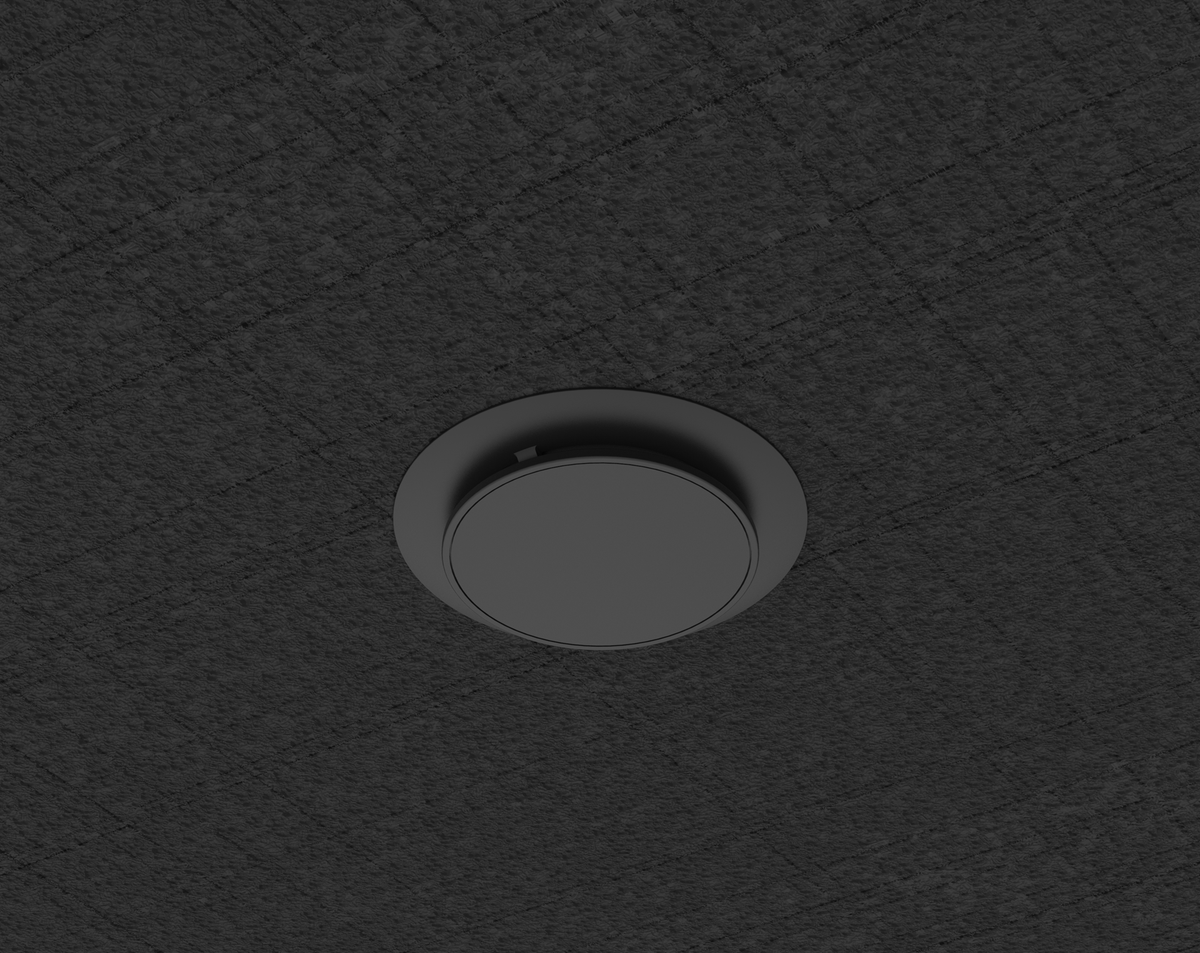

• THREE MOUNTING OPTIONS: Pendant, wall/surface, or in-ceiling. The included wall mount adjusts up to 90°.

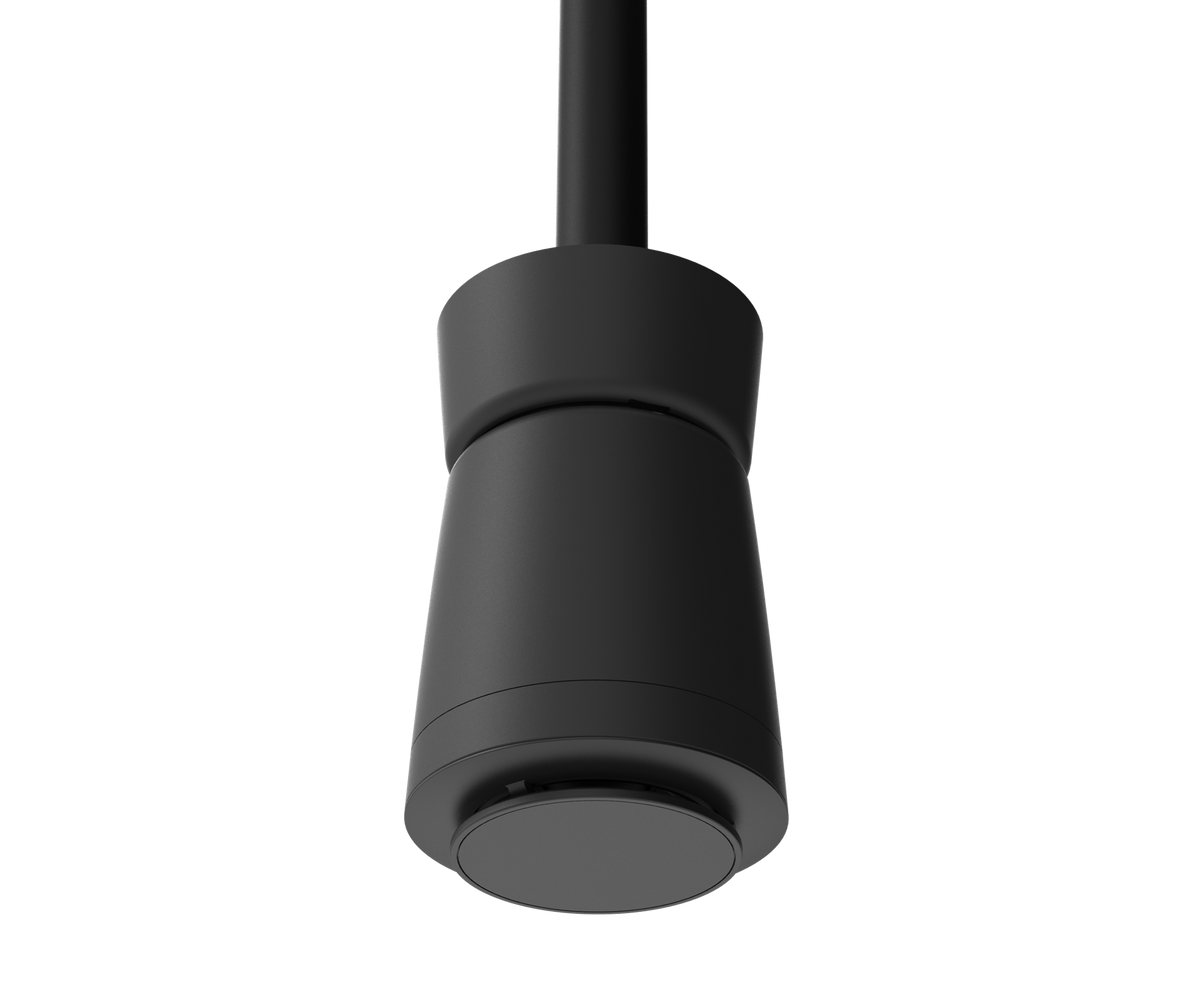

• PENDANT HARDWARE INCLUDED: Steel pendant mounting cable (10.5 ft), looped at the speaker end, with a cable crimp fitting for ceiling attachment. The top of the bracket is threaded for standard ceiling-fan down-pipe hardware.
• ADAPTIVE DISPERSION LENS: Ships with 4mm and 8mm lenses and a direct-fire lens, set up for low ceilings (under 10 ft), 10–14 ft ceilings, or ceilings over 14 ft / maximum intelligibility.
• FLEXIBLE WIRING: Standard 2-conductor speaker wire through a removable 4-pole screw-terminal connector, or Cat5e in/out terminals for daisy-chaining to AtlasIED Z-Series acoustical systems.
• DESIGNLAB COLOR MATCH: Optional custom-printed lens and trim ring to match your ceiling.
• 5-YEAR WARRANTY: 60 months from date of purchase.

SPECIFICATIONS

• Speaker type: 2.25" full-range driver, sealed enclosure, passive
• Frequency response: 180 Hz – 10 kHz (operating range 140 Hz – 20 kHz)
• Sensitivity: 81.6 dB (1W/1m)
• Coverage: 130° horizontal and 130° vertical (2 kHz octave band, 4mm lens)
• Directivity factor (Q): 2.5 @ 2 kHz (4mm/8mm lens); 1.6 @ 2 kHz (direct-fire lens and grille)
• Impedance: 8 Ω nominal, 6.9 Ω minimum
• Power taps: 0.5 / 1 / 2 / 4 W at 70.7V; 1 / 2 / 4 / 8 W at 100V
• Dimensions (H x W): 4.3" x 3.62" (109.3 x 91.8 mm) without wall mount; 6.2" x 3.62" (157.5 x 91.8 mm) with wall mount
• Ceiling cutout: 2.75"
• Shipping dimensions: 4.37" x 13.66" x 12.72"
• Weight: 4.6 lb (2.09 kg), per AtlasIED
• Color: Black (RAL9011)
• Optional accessory: SHS-3T2-TB tile bridge for drop ceilings

IN THE BOX

• 2 SHS-3T2 speakers (black)
• Wall / pole mount brackets and safety wire kit
• Flange, diffuser, and lens kits
• 2 pendant-mount steel cables
• 2 x 20 ft Cat5e plenum cables
