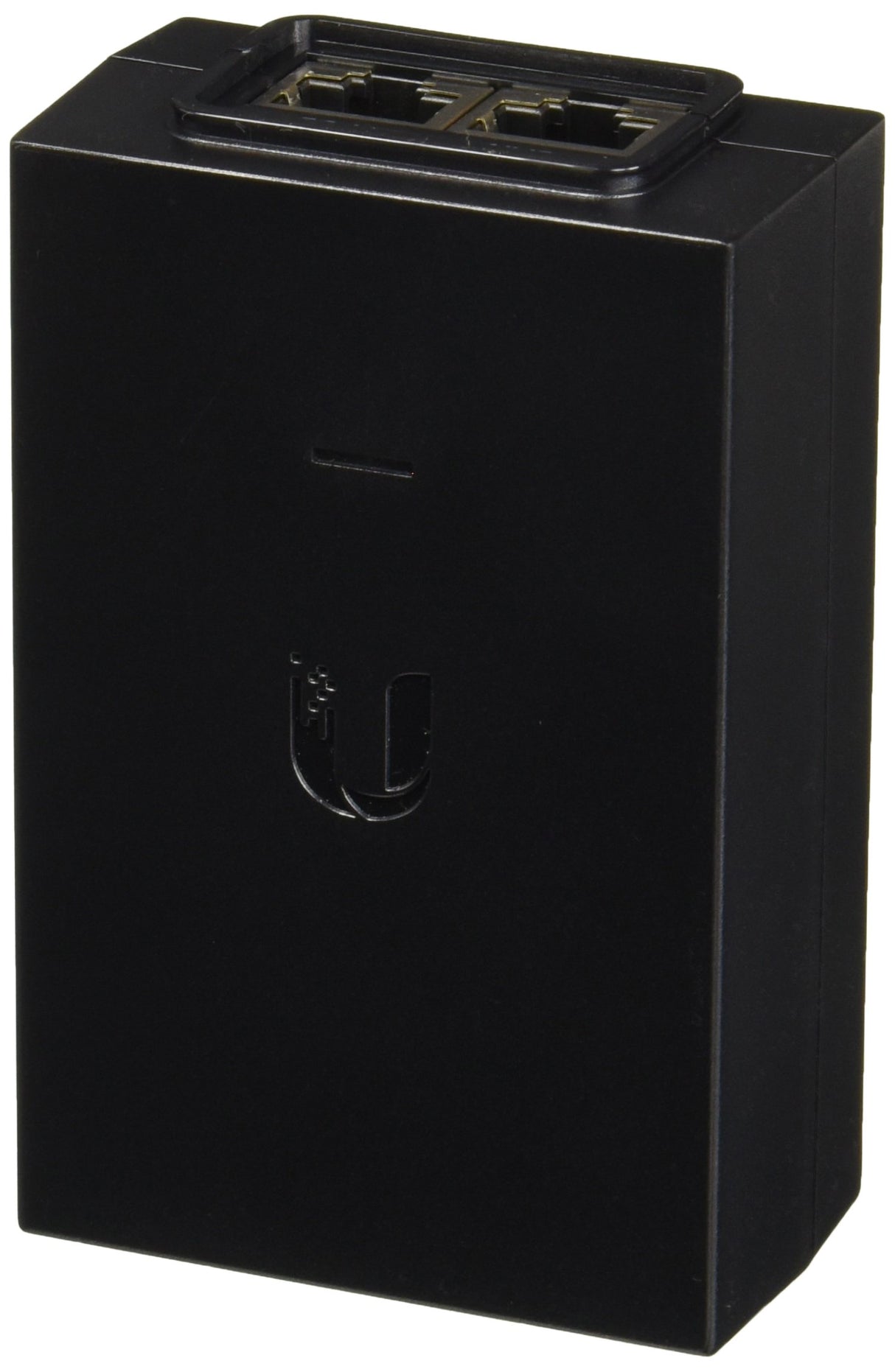

Ubiquiti POE-48-24W-G PoE Injector, 48V 24W Gigabit

The Ubiquiti POE-48-24W-G is a 48V passive PoE injector with a Gigabit LAN port. It sends power and data to a compatible 48V passive PoE device over a single Ethernet cable and includes built-in surge protection.

• Output voltage: 48V DC @ 0.5A (24W)
• Gigabit LAN port: Yes
• LAN activity indicator: No
• Remote reset capability / reset button: No
• 2-pair powering: pins 4, 5 (+) and pins 7, 8 (-)
• Rated input: 100-240V AC @ 50/60Hz; input current 0.6A @ 120V AC, 0.4A @ 240V AC
• Efficiency: 80+%; output ripple 1% max.

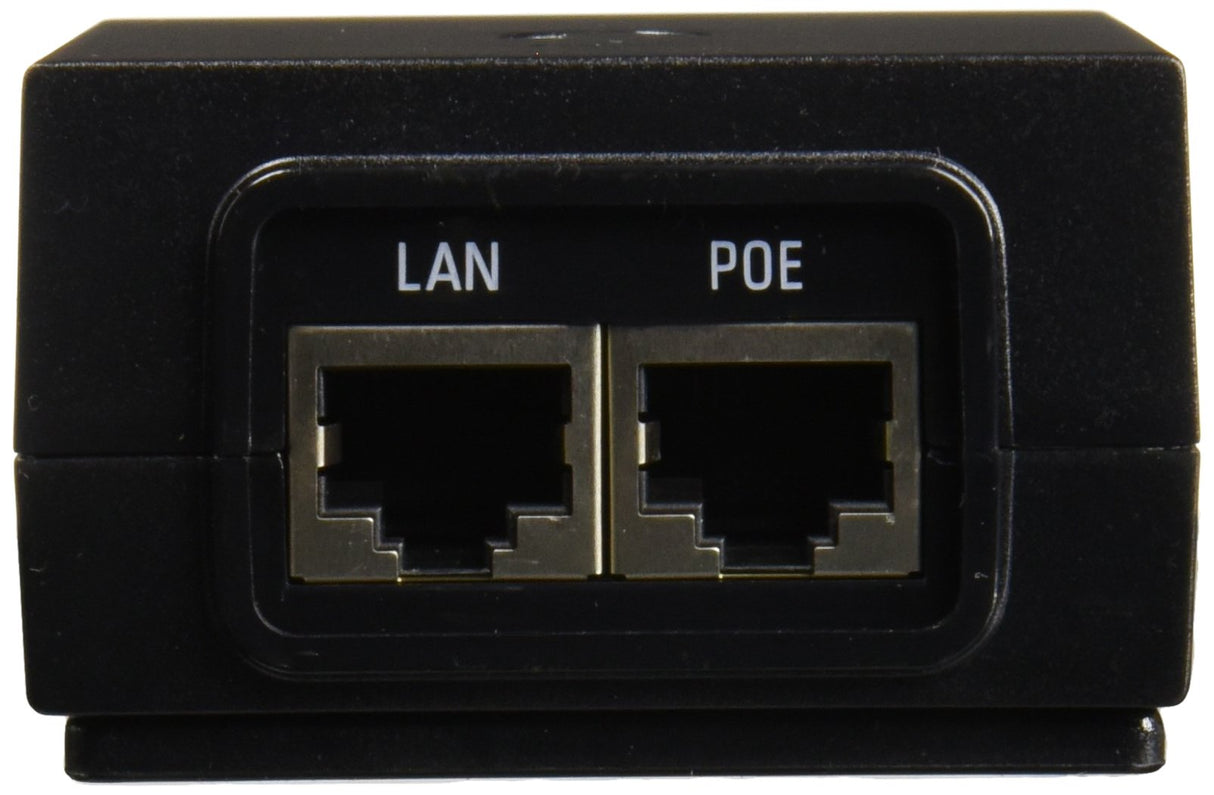

• Data IN / PoE: RJ45 shielded sockets
• Surge protection: difference and common mode; max. surge discharge 1500A (8/20 μs) power
• AC connector: IEC-320 C6; power cable included
• Dimensions: 92 x 60 x 33 mm (3.6 x 2.4 x 1.3 in); weight 159 g (5.6 oz)
• Operating temperature: 0 to 40°C (32 to 104°F); humidity 35 to 95% noncondensing
• Certifications: CE, FCC, IC, UL; NDAA compliant
