Tripp Lite | SKU:
2231624

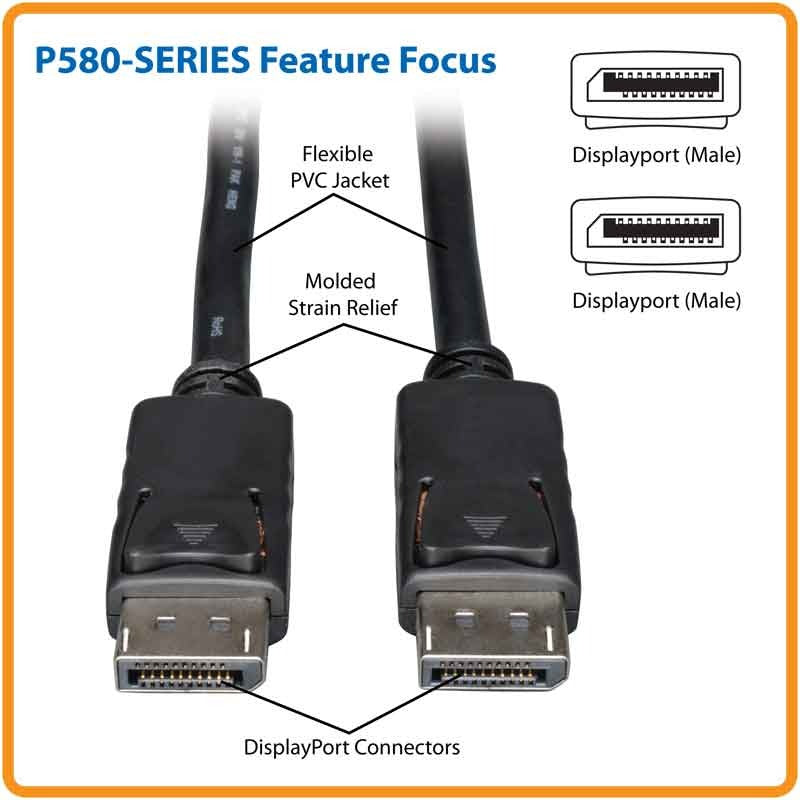

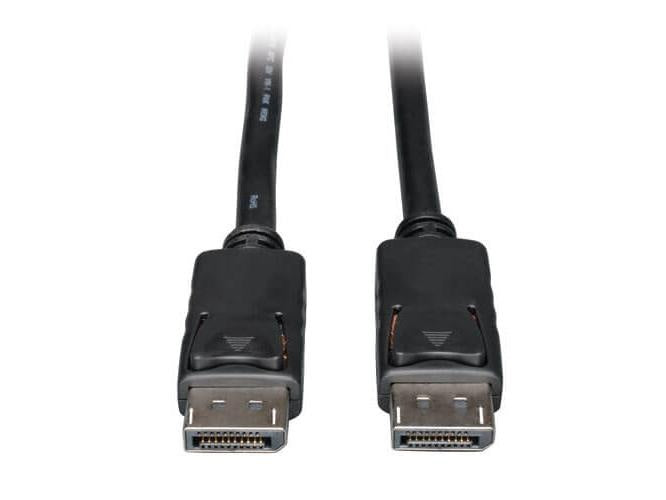

Tripp Lite Series DisplayPort Cable with Latching Connectors, 4K 60 Hz (M/M), Black, 15 ft
Tripp Lite series DisplayPort Cable with Latching Connectors - DisplayPort Left Connector - Male Left Gender - DisplayPort Right Connector - Male Right Gender - 15feet Length - Black - Lifetime limited warranty
- Digital Video and Audio in one cable
- Small footprint compared to VGA or DVI
- Supports Ultra High Definition (UHD) 4K x 2K video resolutions up to 3840 x 2160 @ 60Hz, including 1080p
Specifications
UPC Code 037332145949
Product Type Passive Cable
Technology DisplayPort
Cable Type Passive
VIDEO
Max Supported Video Resolution 3840 x 2160 (4K) @ 60Hz
Max Supported Color Depth 24-bit True Color
HDR Support No
3D Video Supported Yes
Chroma Sub Sampling 4:2:0; 4:2:2
Signal Transmission Bidirectional
CONNECTIONS
Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 DISPLAYPORT (MALE)
Connector Plating Nickel
Contact Plating Gold
Connector Style Straight
Latching or Gripping Connector Yes
PHYSICAL
Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 7.3 mm
Wire Gauge (AWG) 28
Cable Length (ft.) 15
Cable Length (in.) 180
Minimum Bend Radius 73mm
Shipping Dimensions (hwd / in.) 9.10 x 7.20 x 0.10
Shipping Weight (lbs.) 0.65
ENVIRONMENTAL
Operating Temperature Range 32° to 113°F (0° to 45°C)
Storage Temperature Range -40° to 158°F (-40° to 70°C)
Operating Humidity Range 10% to 85% RH, Non-Condensing
Storage Humidity Range 5% to 90% RH, Non-Condensing
COMMUNICATIONS
EDID Compatible Yes
FEATURES & SPECIFICATIONS
MST Support Yes
Ethernet Support No
Displayport Specification 1.2
HDCP Specification 2.2
STANDARDS & COMPLIANCE
Product Compliance RoHS; REACH; WEEE
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) Lifetime limited warranty
Product Type Passive Cable
Technology DisplayPort
Cable Type Passive
VIDEO
Max Supported Video Resolution 3840 x 2160 (4K) @ 60Hz
Max Supported Color Depth 24-bit True Color
HDR Support No
3D Video Supported Yes
Chroma Sub Sampling 4:2:0; 4:2:2
Signal Transmission Bidirectional
CONNECTIONS
Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 DISPLAYPORT (MALE)
Connector Plating Nickel
Contact Plating Gold
Connector Style Straight
Latching or Gripping Connector Yes
PHYSICAL
Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 7.3 mm
Wire Gauge (AWG) 28
Cable Length (ft.) 15
Cable Length (in.) 180
Minimum Bend Radius 73mm
Shipping Dimensions (hwd / in.) 9.10 x 7.20 x 0.10
Shipping Weight (lbs.) 0.65
ENVIRONMENTAL
Operating Temperature Range 32° to 113°F (0° to 45°C)
Storage Temperature Range -40° to 158°F (-40° to 70°C)
Operating Humidity Range 10% to 85% RH, Non-Condensing
Storage Humidity Range 5% to 90% RH, Non-Condensing
COMMUNICATIONS
EDID Compatible Yes
FEATURES & SPECIFICATIONS
MST Support Yes
Ethernet Support No
Displayport Specification 1.2
HDCP Specification 2.2
STANDARDS & COMPLIANCE
Product Compliance RoHS; REACH; WEEE
WARRANTY & SUPPORT
Product Warranty Period (Worldwide) Lifetime limited warranty
Regular price
$39.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Tripp Lite Series DisplayPort Cable with Latching Connectors, 4K 60 Hz (M/M), Black, 15 ft is backordered and will ship as soon as it is back in stock.
